Portable Digital Vaginal Endoscope

₹19,928.65

20 in stock

SKU: 10046 Categories: All Products, Endoscopes & Microscopes

Self-inspection
AV/USB output,connect to TV/Computer
Store function
Echo-friendly&easy use
High definition display

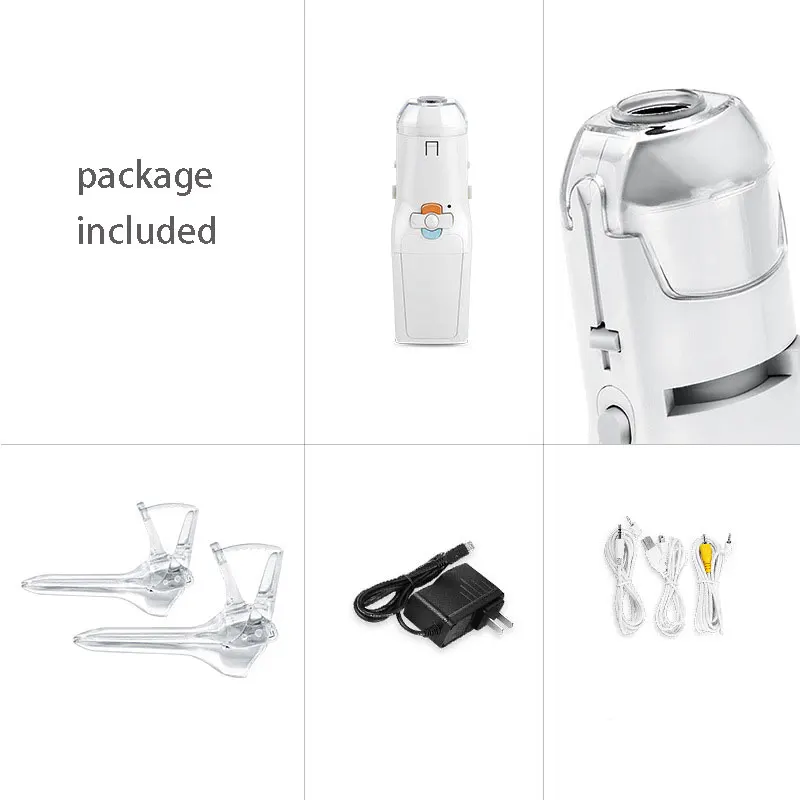

Standard Configurations:

1. One main unit

2. Two disposable heads (one small size + one middle size)

3. One cable connected to Television, One USB cable

4. One lubricant 10g

5. Three batteries

6. One color atlas of different cervix

Optional

TF Card

General Descriptions

AV/USB output, connect to TV/Computer

Store function, Memoryâ¥16M, more than 150 images by itself

X 1.5 magnification in real time

Electronic colposcope, advanced technology

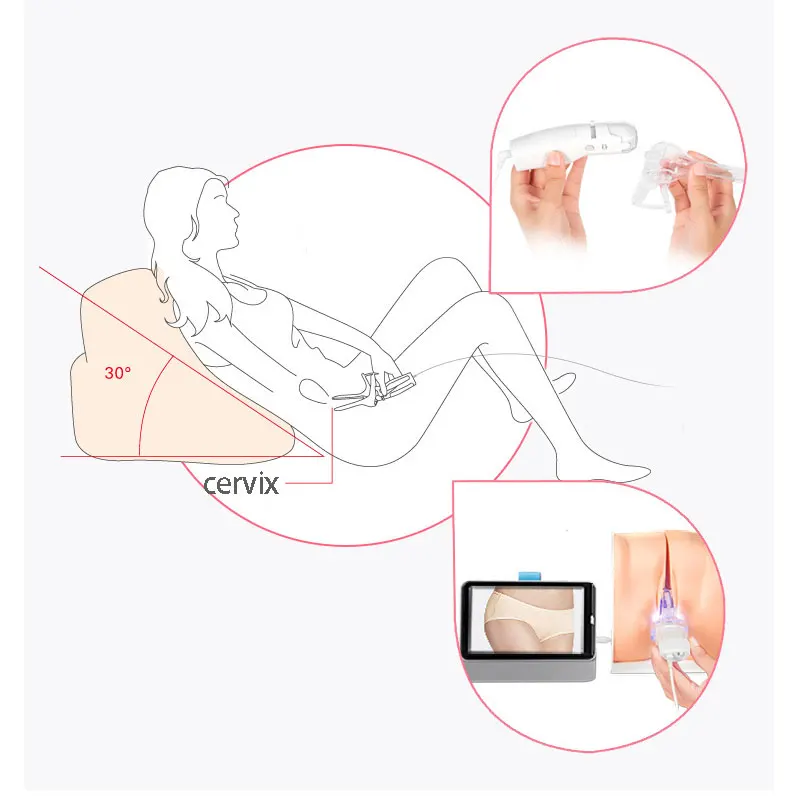

Performing cervical self-examination at home,
Discover earlier , healthy more .
Monitor treatment and prevent recurrence

The privacy is under your control
Echo-friendly & easy use
High definition display

Portability as a camera
Self – inspection
Cheap cost

Specifications

Main unit

Power Supply	DC 4.5V, AAA batteries (×3)
Output Signal	PAL color system, AV(video)signal
Normal Working Conditions	temperature:15°C—30°C
	humidity:≤93%RH
	pressure:700hPa—1060hPa
Conditions of Storage and Transport	temperature:-20°C~+45 °C
	humidity:90%RH
	pressure:700hPa—1060hPa
Weight	about 50g (batteries non-included)
Dimensions (L×W×H mm)	126×40×34
Safety Class	internal battery source, BF type
Technical Index	effective range of observation	70mm~100mm
	angle of observation	20°, permit error -10%,no upper limit
	resolution	2.5 lp/mm, permit error -10%,no upper limit
	Memory	≥16M

Disposable head

size parameters		S	M	Notes
Outline Dimension	Length (movable bill)	98±2	109±2	Size S is for female before childbirth or age above 50s Size M is for female after childbirth and age below 50s.
Outline Dimension	Width (of the bill)	20±1	27±1
Height of Front Outside Mouth	Minimum	31±5	40±5
Height of Front Outside Mouth	Maximum	60±5	67±5
